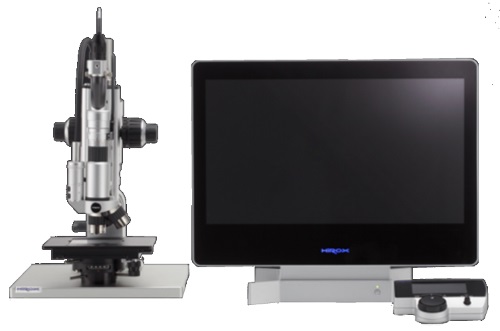

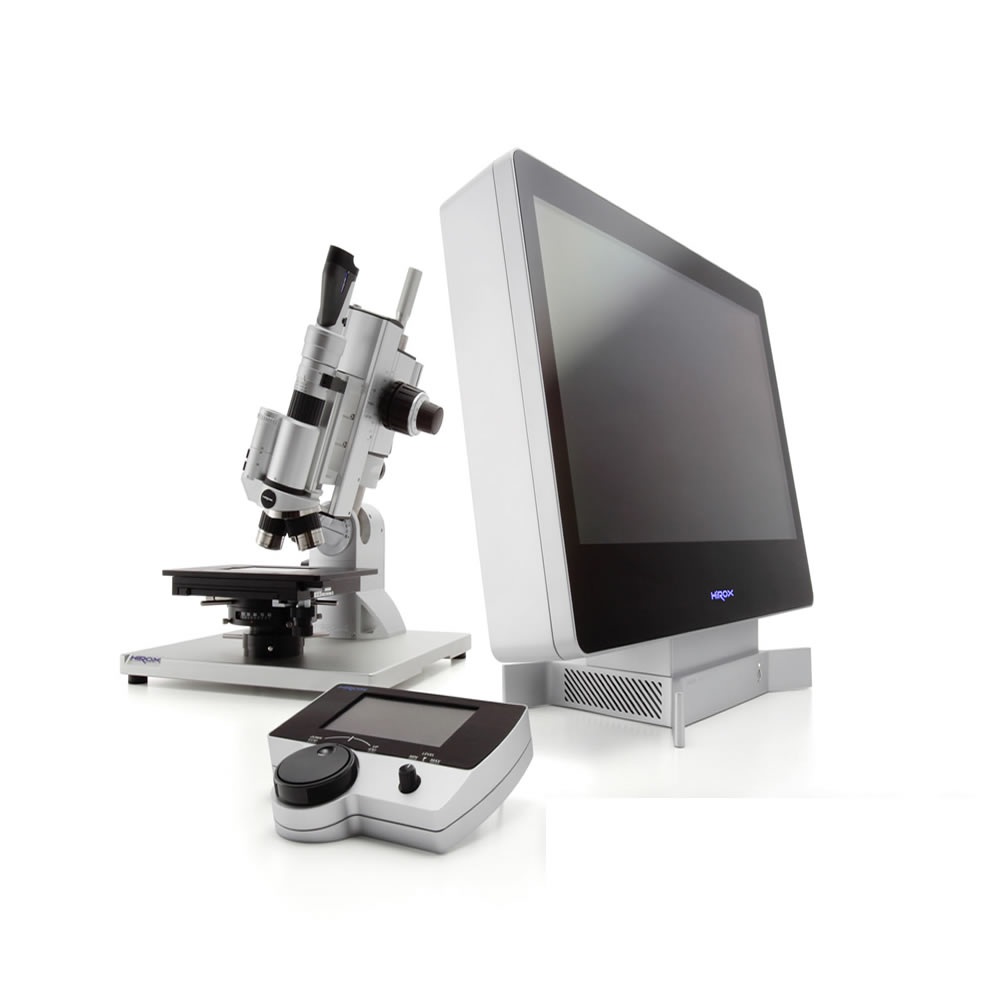

Microscópio Digital de fabricação japonesa de ultima geração

• 24 frames por segundo
• LED de alta intensidade
• LCD de alta definição
• Função point and focus, facilidade em focar apenas com um click
• sistema anti-vibração
• Software de processamento de imagem poderoso

Características básicas

Camera	Image sensor	1/1.8-inch, 2.11 Mega-pixel CCD Sensor
	Scanning Mode	Progressive Scan
	Total Pixels	2.11 Mega-pixels 1688 (H) x 1248 (V)
	Effective Pixels	2.01 Mega-pixels 1688 (H) x 1236 (V)
	Visual Pixels	1600 (H) x 1200 (V)
	Frame Rate	24 Frame at 1600 x 1200 Pixel Resolution
	High Dynamic Range (HDR)	32 Bit Resolution Process and 16 Bit Resolution Output
	Electronic Shutter	AUTO (1/24 ~1/100000) MANUAL z (8, 4, 2, 1, 1/2, 1/4, 1/8, 1/24, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000
	Supercharge Shutter	Preference Setup (17 ~ 1/100000)
	Gain	Auto (0dB ~ 6dB), Manual (0, 3, 6, 9, 12dB), OFF
	White balance	Auto (One Push), Manual (R, B)
	Camera Cable Length	2 Meter (Option: up to 10 meter extension)
	Back-Focus Adjustment	NOT Required

Image	Format	Exif-JPEG (compressed), Exif-TFF (non-compressed), BMP (non-compressed)
	Maximum Pixel Resolution	58 Mega-pixels – 8600 (H) x 6600 (V) (Non-Tiled Image)
	Maximum Pixel Size	225 Mega-pixels – 15000 Pixels (H) x 15000 Pixels (V) (Tiling Image)
	Movie Format	AVI (non-compressed), WMV (compressed)

Monitor	Display Size	Full HD LCD 21.5″ Monitor
	Panel Size	18.75″ (H) x 10.56″ (V) – 476.2 (H) x 268.11 (V) mm
	Pixel Pitch	0.01″ (H) x 0.01″ (V) – 0.248 (H) x 0.248 (V) mm
	Number of Pixels	1920 (H) x 1080 (V)
	Display Color	Approx. 16,770,000 colors
	Brightness	300cd/m2 (typical)
	Contrast Ratio	1000:1 (typ)
	Viewing Angle	170° (Horizontal), 170° (Vertical)

Light Source	Lamp	High Intensity LED
	Lamp Life	30,000 hours (Average)
	Color Temperature	5700K

Image output	Output method	Analog RGB / Display Port (1920 X 1080Pixel or more)

Output	Video	Analog RGB / Display Port (Requires higher than 1920×1080 Pixels)
	Step Motor	Z-Axis Step Motor Controller Port (5 Phase Motors Driver Integrated)
	Rotary Head	DC Motor Controller Port

Input	ACS Terminal	ACS Sensor Connection Port
	Keyboard and Mouse	Support 2.0 USB Keyboards and Mouse
	External Remote	Foot Switch (Freeze / Capture Image) Port
	Remote Device	Remote Device (CT-R01)
	Extra Controller	RS-232C Connector Port

Interface	LAN	10BASE-T/100BASE-TX/1000BASE-T
	USB2.0	6 Ports (2 x Side, 4 x Back)

Storage Capability	Hard Disk Drive	500 GB Hard Drive (300 GB of Recording Capacity) Approx. 1,500,000 Images (compressed) to Approx. 50,000 Images (not compressed)
	Other Drives	USB 2.0 external CD-R/RW, DVD±R/+R, DVD/±RW/-RAM, HDD

Power Supply	Rated Voltage	AC100~240V, 50/60Hz
	Power Consumption	195W

Environmental Resistance	Ambient Temperature	5° C to 40°C (no freezing or condensation)
	Storage Temperature	‘-10° C to 50° C (no freezing or condensation)
	Relative Humidity	25 to 85% RH (no condensation)
	Atmosphere	Corrosive Gas Prohibited

Weight	Main Unit	Approx. 14 kg
	Camera	Approx. 1 kg
	Remote Device (CT-R01)	Approx. 0.5 kg

Dimensions	Main Unit	20.67″ (W) x 17.42″ (H) x 8.70″ (D) – 525 (W) x 442.5 (H) x 221 (D) mm

Optional Motorized Z-Axis Specifications

FB-E	Image sensor	1/1.8-inch, 2.11 Mega-pixel CCD Sensor
	Stage Stroke Distance	30 mm (1.18″) Motor / 85 mm (3.34″) Manual
	Resolution	0.05 um (0.002 Mil) / pulse – 5 Phases Motor
	Repeatability	0.5 um (0.23 Mil)
	Weight	1 kg

Numerous Functions

Observation Settings

Camera Preview Function (displays automatically adjusted image previews) Auto Camera Settings / Camera Image Settings Mode Function (save camera settings) Auto Calibration Select (ACS) (zoom mag is automatically relayed to the system) Edge Enhancement Function Hue Correction and Chroma Correction Setting including Chroma ON/OFF Gamma Correction / Contrast Settings including Live Anti-Halation Mode Camera Shake Correction Brightness Level Light Source ON/OFF and adjustable lighting intensity White Balance (Auto / Manual)

Observation Tool an Enhanced Digital Processing

Quick Focus (Quick extended depth composition) Auto Focus (Point Focus) – Just Double Click HDR (High Dynamic Range) Function / HDR Preview Function Anti-Halation Function / Anti-Halation Preview Function Focus Control (Auto Z-axis controller) / Focus Indicator Rotary Head Control (Visual 3D image controller) Real-Time Digital Zoom High-Resolution Image Function Grid Settings (Various Functions are available) Image Adjustment (contrast, edge enhancement, noise removal, binarizing) Custom Tool Bar and Quick Function Key on Remote Device

2D Measurement Function	Distance, Angle, Radius, Diameter, Area, etc. High Resolution Measurement Auto Calibration (Auto / Manual) / Calibration Data Protection / Custom Lens List Setting Automatic Measurement (Auto-Count, Auto-Area, Auto-Edge Detection) Scale Display (Metric/Inch) Statistic Data Output from Measurement Result CSV output (Measurement Result) Image Data Parameter

3D Measurement Function

Depth Composition: AMF3D merge function: Auto Multi-focus 3D Merge function Depth Composition: APS function: Auto-Positioning function 3D Multi-Focus (Quick 3D, Semi-Auto, Full-Auto, Manual) / 3D Model Preview Function HDR and Anti-Halation 3D Model / 3D Model Preview Function 3D Display (Original Color / Wireframe / Pseudo Color Display) 3D Model Illumination Simulation Function 3D Profile Measurement (Height, Length, Angle, Radius etc.) on 3D Model Image or 2D Image 3D Profile Roughness Measurement 3D Volume and Area Measurement 3D Image Height Point Measurement 3D Image Map CSV Output (Import to Various 3D application Software) 3D Model Level Correction / Noise Filter and Removal

Tiling	2D Tiling (Up to 15000 x 15000 pixels) 3D Tiling (Up to 10000 x 10000 pixels)

Recording	Capture Still Image (1600×1200, 1440×1080, 1200×960, 1024×768, 800×600, 640×480) High-Resolution Image (8600×6600, 6400×3600, 3200×2400, 2400×1800) Movie – 1200×1600 (15FPS), 800×600 (24FPS) including Time Lapse (Timer Recording) Cropping Image

Library	Browser Explorer

Display	Split Monitor (Horizontal, Vertical, 4 window splitting) – All Functions are accessible Turning Over, ±90 Rotation Comments / Annotation Grid, Scale, Date, Comments, Annotation, Image Information

Utility	Easy Report Function and Export with Excel Format System / User Settings / Network Settings Password Protection (Calibration / User setup) Language Setting (English, Japanese ) Help (Pop-up User Guide / Manual) / Version Information Printer / Compatible with a Foot Switch

Additional Software for PC	Free 3D Image File Viewing Software
